Rolled baking belts & CLEANBELT®
In addition to the various types of STEINHAUS wire conveyor belts, a rolled backing belt with a specially developed cleaning system is also available.
Our sister company STEINHAUS GmbH offers a wide range of different wire conveyor belts. In addition to the wire conveyor belts offered, wire belts can also be individually configured.
All wire conveyor belts from STEINHAUS GmbH at a glance:
Wire mesh belts Wire eyelet link belts Mesh link belts Crossbar belts Spiral belts Bar mesh belts Bar mesh belts
Wire mesh belts
Group 500/550
The wire mesh belts from STEINHAUS consist of round wire spirals, which are manufactured from either a flat oval (500) or a round (550) spiral shape. These are braided alternately on the right and left and made up of sections.
Wire mesh belts are used for light transport goods such as rayon, tobacco, matches, glass wadding, etc. The 500 group can be manufactured up to a width of 5,500 mm and the 550 group up to a width of 3,000 mm.

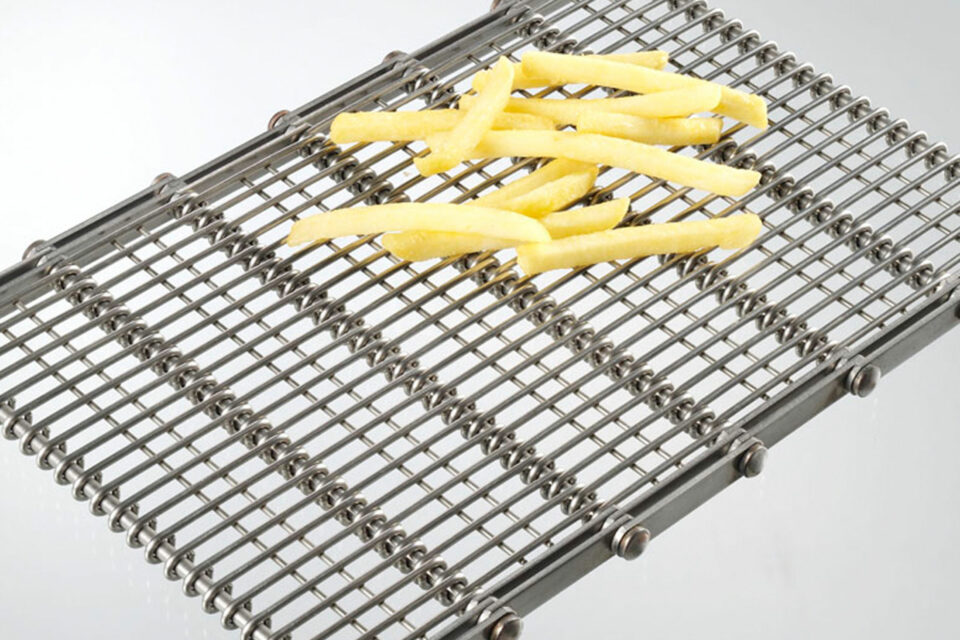

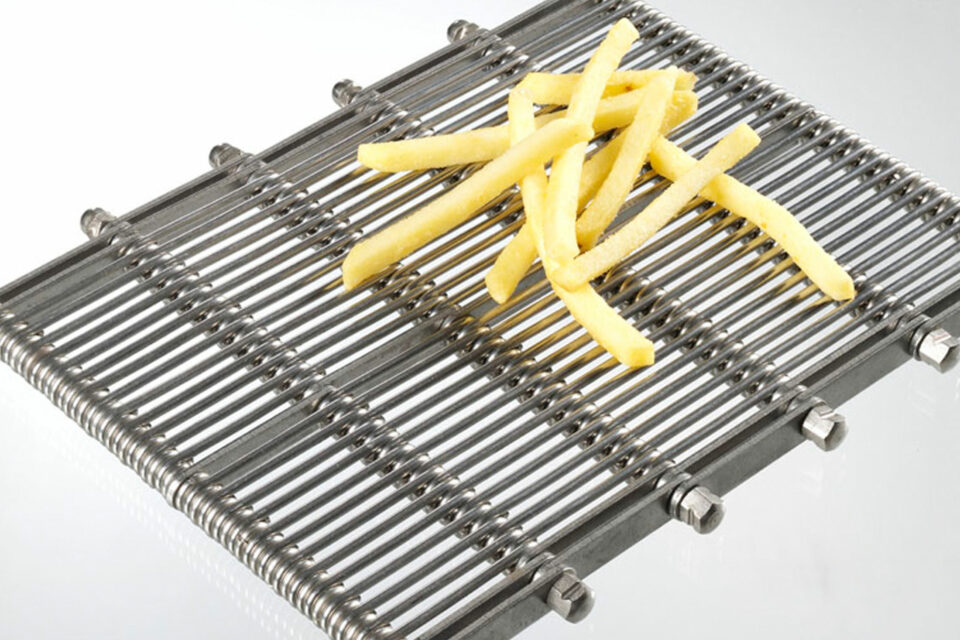

Wire link belts
Group 800
The wire eyelet link belt from Steinhaus consists of double eyelet links and crossbars made of smooth round wire. A cross wire can be welded underneath for stabilization on request. The edges are optionally welded, riveted, brazed or screwed.
This belt type is used in drying, cooling, washing and dewatering systems, as well as in the beverage industry and for filter systems. The eyelink belts are manufactured up to a width of 6,000 mm and can be used at temperatures from -100 °C to 1,200 °C.
Braided link belts
Group 100
The flat wire link belt consists of flat wire spirals braided alternately on the right and left. The crossbars are smooth or optionally ribbed.
The flat wire link belt is used in continuous ovens or drying systems, for example, and can be manufactured up to a width of 5,000 mm. It can also withstand temperatures from -100°C to +1200°C.

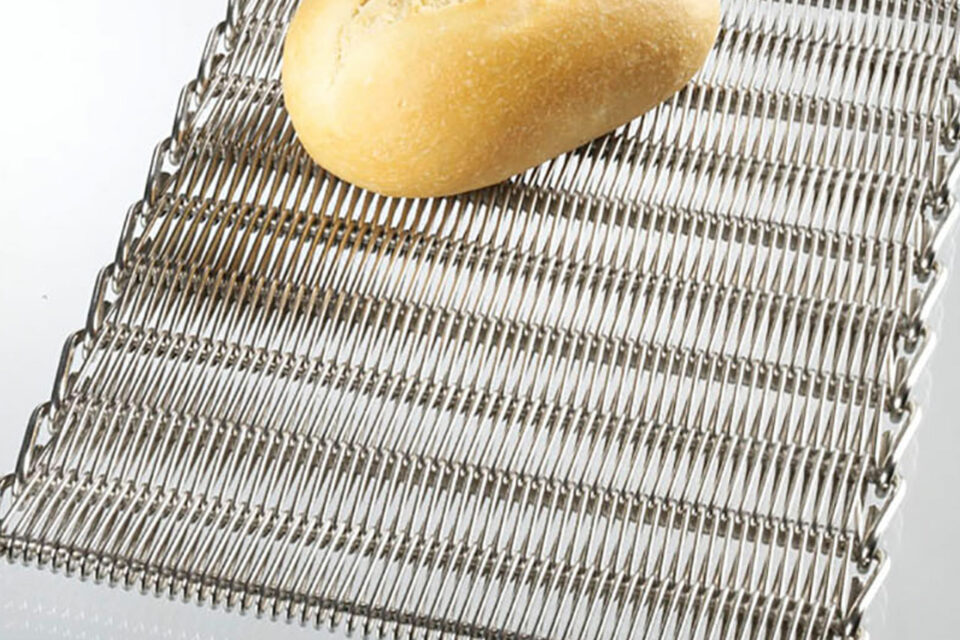

Group 200
The round wire link belt consists of alternating right and left closely woven round wire spirals. The crossbars are smooth or optionally ribbed.
The round wire link belt is used in continuous ovens, drying systems, casting transport or for baking bread, for example, and can be manufactured up to a width of 5,000 mm. It can also withstand temperatures from -100°C to +1200°C.

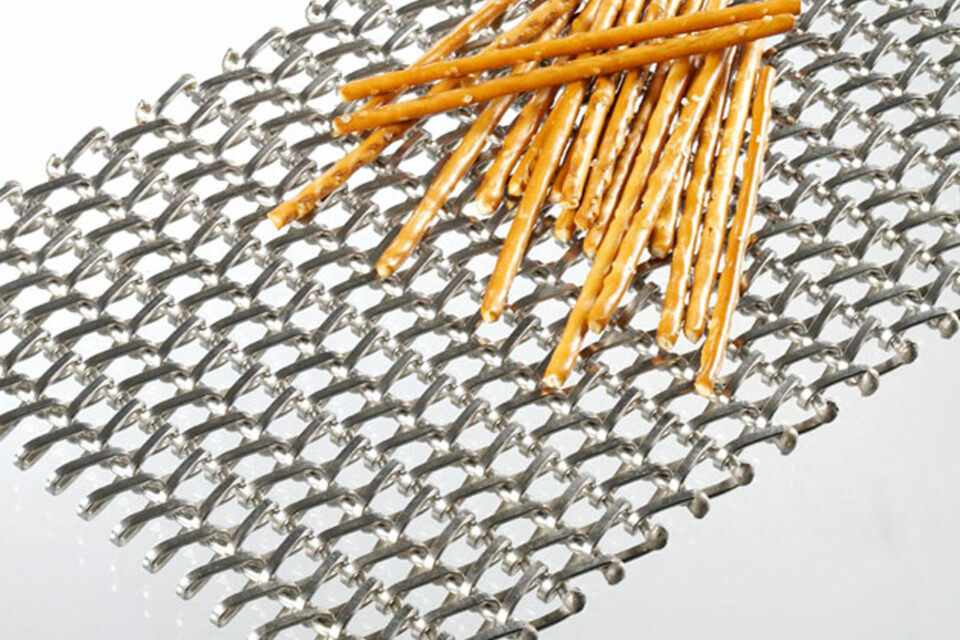

Group 300
The braided link belt consists of alternating right and left wide-mesh braided flat wire spirals. The crossbars are corrugated.
The braided link belt is used for glass and briquette cooling, baking and roasting ovens and veneer drying, among other things. These belts can be manufactured up to a width of 6,000 mm. It can also withstand temperatures from -100°C to +1200°C.

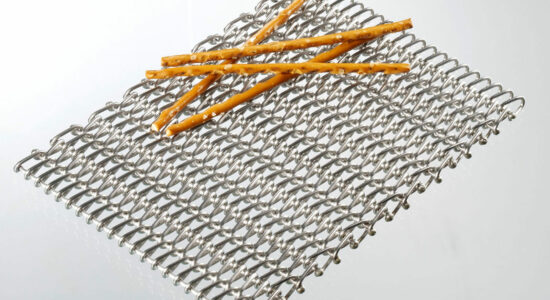

Group 400
The braided link belt consists of alternating right and left wide-mesh braided round wire spirals. The crossbars are corrugated.
The braided link belt is used for glass and briquette cooling, baking and roasting ovens and freezers, among other things. These belts can be manufactured up to a width of 6,000 mm. It can also withstand temperatures from -100°C to +1200°C.
Crossbar belts
The crossbar belt consists of laterally constrained chains. Groups 100 to 4000 are possible as infill mesh.
This belt type is used for medium and heavy goods, as well as for washing, cooling, drying and coating. Crossbar belts can be manufactured up to a width of 2,000 mm and can withstand temperatures from -100°C to 400°C.
Spiral belts
Double spiral belt group 1100
The double spiral belt consists of round wire spirals of group 500 and is double-laid with additional smooth crossbars, dense design, braided on one side and with welded head edge.
This type of belt is used for long-life baked goods, cookies, cookies and drying ovens. Double spiral belts can be manufactured up to a width of 1,500 mm and can withstand temperatures of up to 1,200°C.
Single spiral belt group 1300
The single spiral belt consists of round wire spirals of group 400. The braiding method is the same as for group 500, one-sided, single inserted with additional smooth cross bars, open design, connecting edge, spirals pressed and the cross bars are welded to the spirals.
This belt type is used in continuous furnaces for tempering, hardening, brazing etc., as well as in drying and annealing furnaces. Single spiral belts are manufactured up to a width of 1,500 mm and can withstand temperatures of up to 1,200°C.

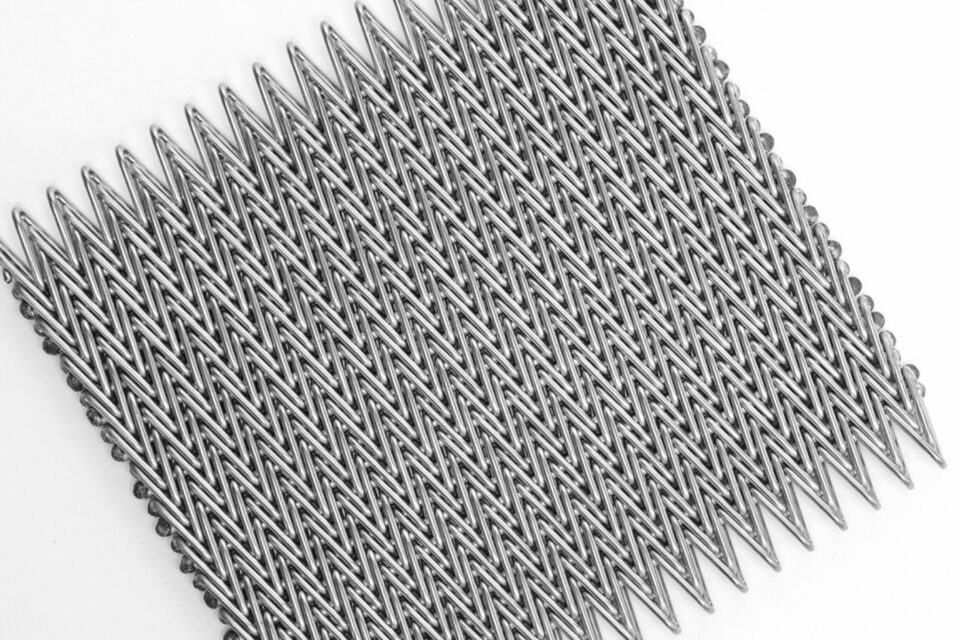

Multiple spiral belt group 3000/4000
The multiple spiral belt consists of Group 300 flat wire spirals or Group 400 round wire spirals. It is triple-laid with smooth crossbars, very dense design, flat surface and the edges are welded.
This type of belt is used for conveying granulate, chocolates, cookies, confectionery, semi-finished steel products, sintered parts, etc. Multi-spiral belts are manufactured up to a width of 3,000 mm and can withstand temperatures of up to 1,200°C.
Rod mesh belts
Group 700
The bar mesh belt consists of cranked crossbars that are hooked together with thin round wires.
Additional edge reinforcement is possible with a Z-edge, for example. This belt type is used as an enrober for chocolates and confectionery or for light goods such as cookies.
The rod mesh belts are manufactured up to a width of 2,500 mm and can withstand temperatures from -100°C to 400°C.
Bar mesh belts
The bar mesh belt consists of smooth cross bars that are connected to each other by wire strands.
The edges are cut or optionally reinforced.
This belt type is used, for example, for conveying and drying vegetables, tobacco, green fodder, hops, etc. These belts are manufactured up to a width of 3,100 mm and can be used at temperatures of up to 400 °C.
OPTIMA plate belts
Group 1200
The OPTIMA plate belt consists of plates made of welded profile wires & cross bars. Reinforcement / reinforcement depending on the load. Designed for the attachment of angle link chains. Steinhaus manufactures OPTIMA plate chords in various normal or stainless steels or also galvanized. OPTIMA plate belts are manufactured up to a width of 3,000 mm and can withstand temperatures from 100 °C to + 400 °C.
This belt type is used for the production of insulation boards, as well as in drying ovens for glass wool, expanded clay, etc.
Honeycomb belts
Group 1000
The honeycomb belt consists of horizontally trapezoidal corrugated honeycomb elements standing on edge. The edges are optionally bent, welded or hard-soldered.
This belt type is used for glass cooling, baking and roasting ovens, as well as briquette cooling, veneer and cardboard drying. Honeycomb belts are manufactured up to a width of 5,000 mm and can withstand temperatures from -100°C to 600°C.
Combination belts
The combination belt consists of a center section of group 400 and lateral hinge-like edge strips of group 500, which allow troughing in the transverse direction. A positive drive is provided by gear wheels.
This belt type is used in belt filter systems. Combination belts are manufactured up to a width of 2,000 mm and can withstand temperatures of up to 1,200°C
About STEINHAUS GmbH
Our German sister company, STEINHAUS GmbH, specializes in components and equipment for a wide variety of applications.
The product range includes steel, rubber and polyurethane screen panels, perforated plates, rolled baking oven belts & CLEANBELT ®, wire conveyor belts, OPTIMA wedge wire screens, precision filter tubes & centrifuge baskets, industrial filters, MULTOTEC Process Equipment, as well as LuCoTec air spring systems.
